How Big is a Starlink Dish? Dimensions & Weight Guide (2026)

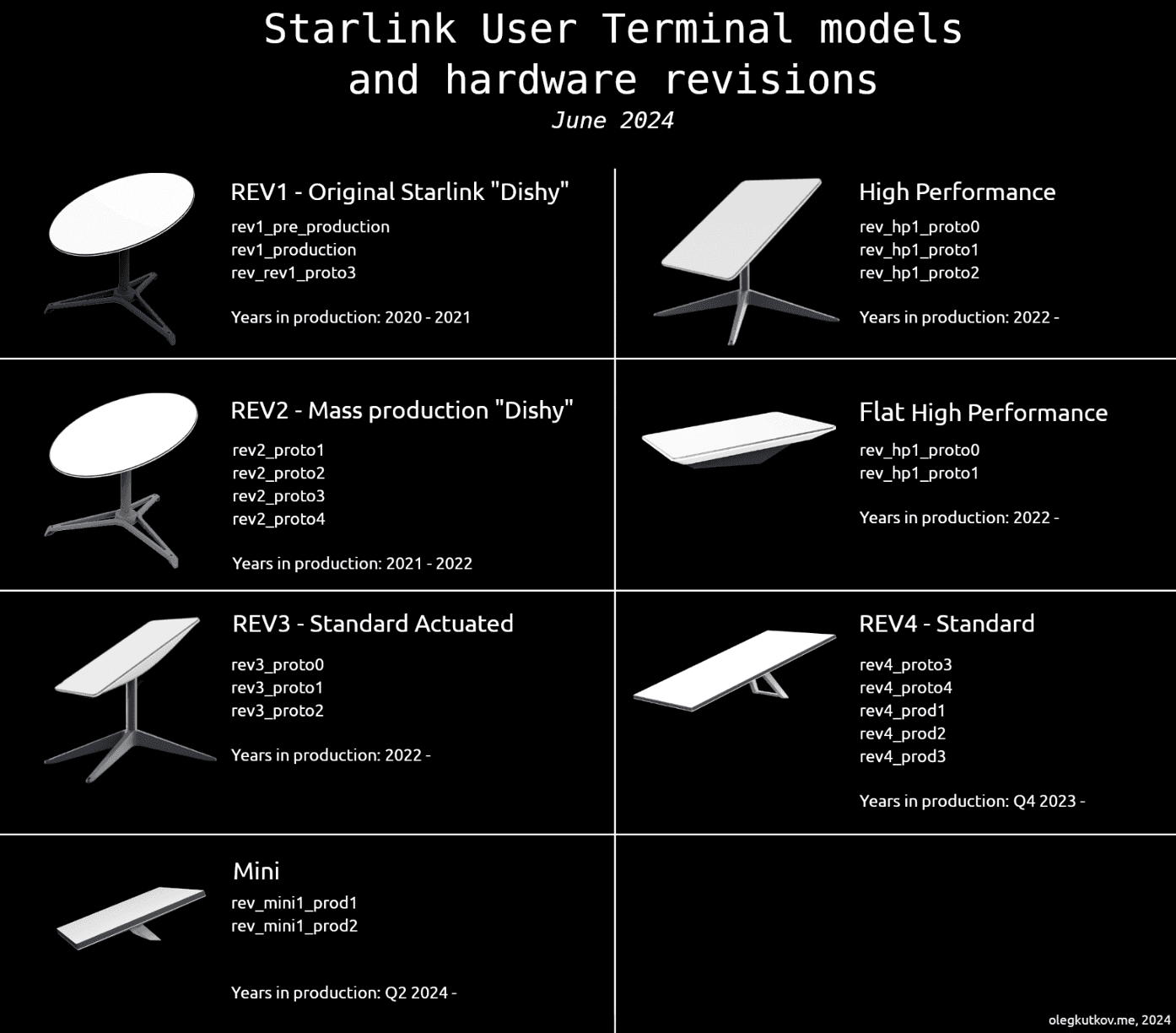

Whether you are mounting a receiver on your roof, packing up an RV for a road trip, or outfitting a commercial vessel, knowing the exact size of your Starlink equipment is crucial. Since the release of the original hardware, the Starlink ecosystem has expanded into eight distinct active configurations, each with specific dimensions and weights.

Below is your complete guide to Starlink dimensions in both inches and centimeters, including bare dish sizes, total kit package weights, and kit box measurements based on the 2026 official specifications.

How Big is a Starlink Dish? (Quick Answer)

If you are looking for a fast breakdown of the active Starlink models, here is a quick size and weight comparison table:

Starlink Dish Dimensions by Model

To plan your mounting setup or travel storage properly, here are the detailed specifications and shipping box dimensions for each of the eight specific kits.

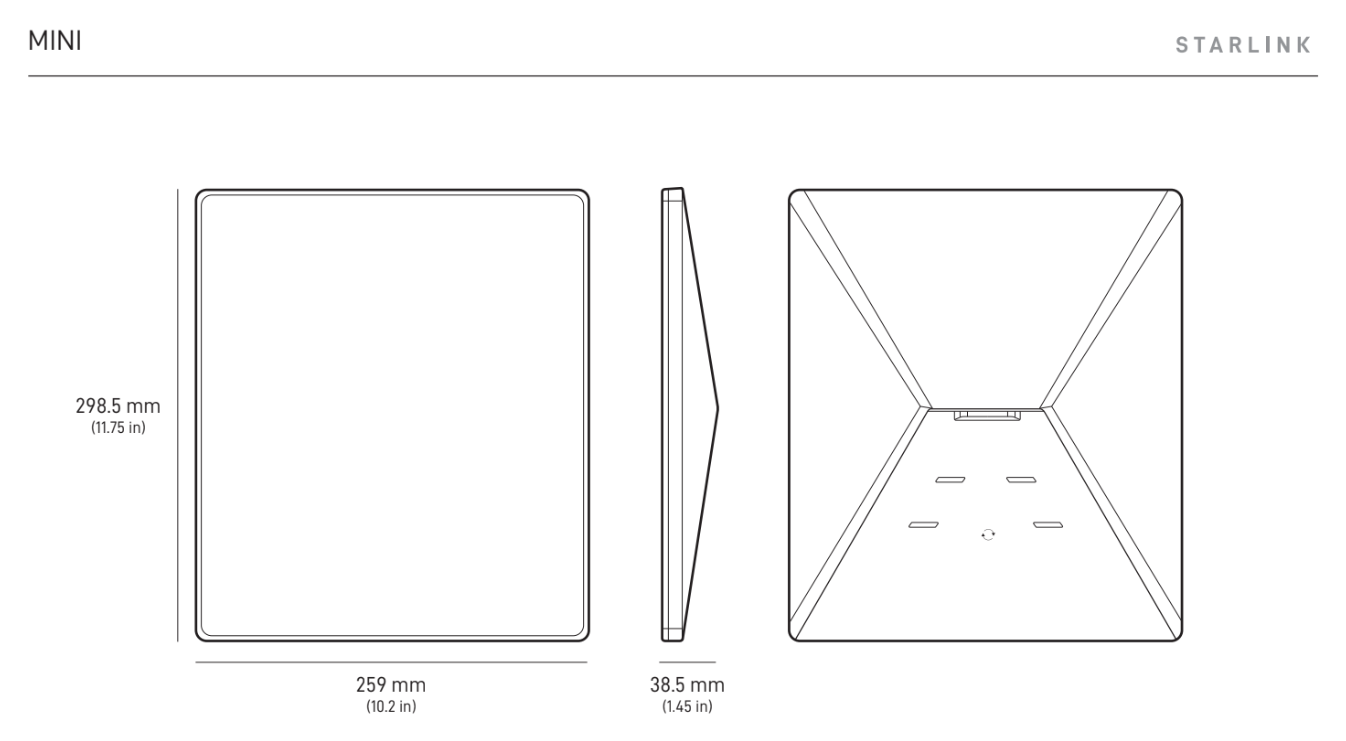

Note: Dimensions of Mini and Mini X dishes are the same.

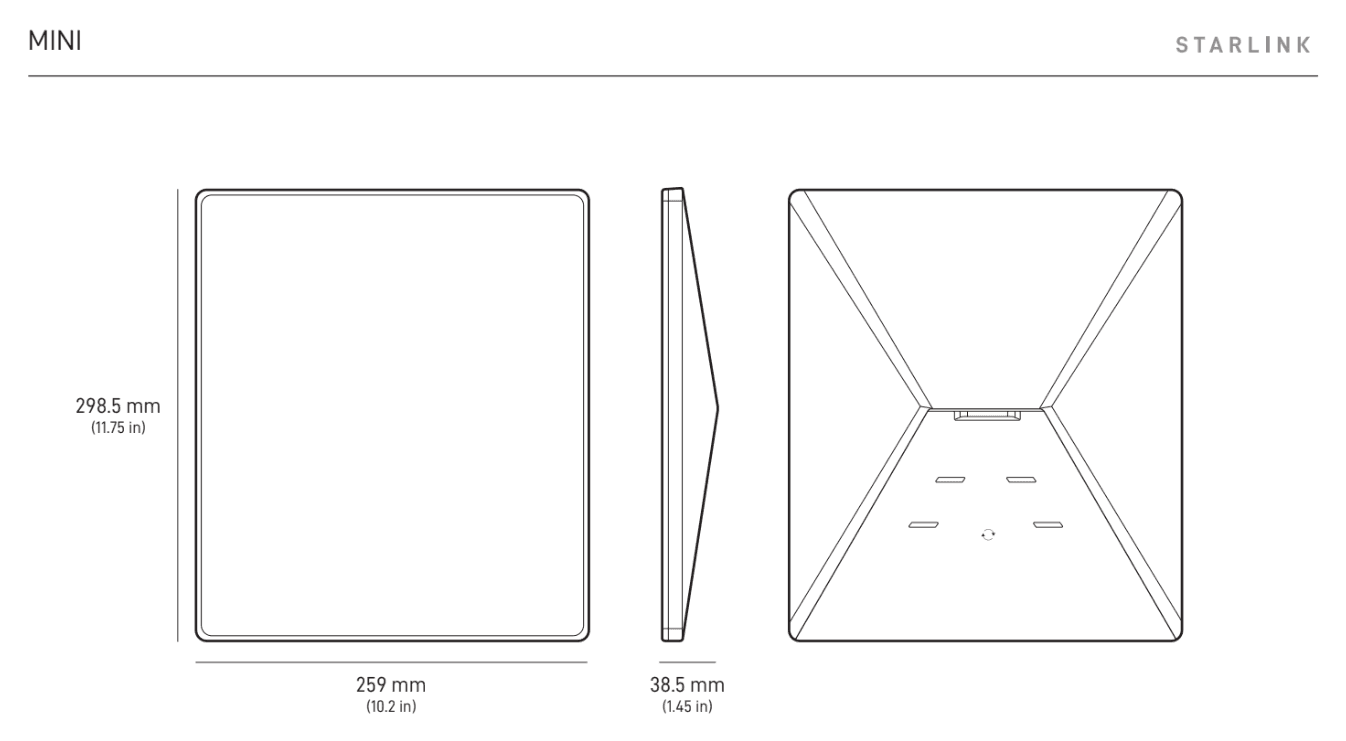

Mini Kit

The standard Mini is designed for pure portability, making it perfect for hikers, digital nomads, and overlanders. It features integrated Wi-Fi directly inside the dish to minimize hardware.

• Dish Dimensions: 11.75 in L x 10.2 in W x 1.45 in D (298.5 mm x 259 mm x 38.5 mm)

• Kit Box Dimensions: 16.92 in x 13.14 in x 3.11 in (430 mm x 334 mm x 79 mm)

• Total Package Weight: 6.37 lbs (2.89 kg)

• Best For: Backpacking, RVs, and temporary travel setups.

Mini X Kit

While utilizing the exact same highly portable dish footprint as the standard Mini, the Mini X configuration includes a separate "Router Mini" device and additional mounting components (like the pipe adapter and flat mount) for more permanent routing setups.

• Dish Dimensions: 11.75 in L x 10.2 in W x 1.45 in D (298.5 mm x 259 mm x 38.5 mm)

• Kit Box Dimensions: 16.92 in x 13.14 in x 3.11 in (430 mm x 334 mm x 79 mm)

• Total Package Weight: 14.83 lbs (6.73 kg)

• Best For: Vehicles, mobile power setups, and users who prefer an external, dedicated router over the integrated Wi-Fi.

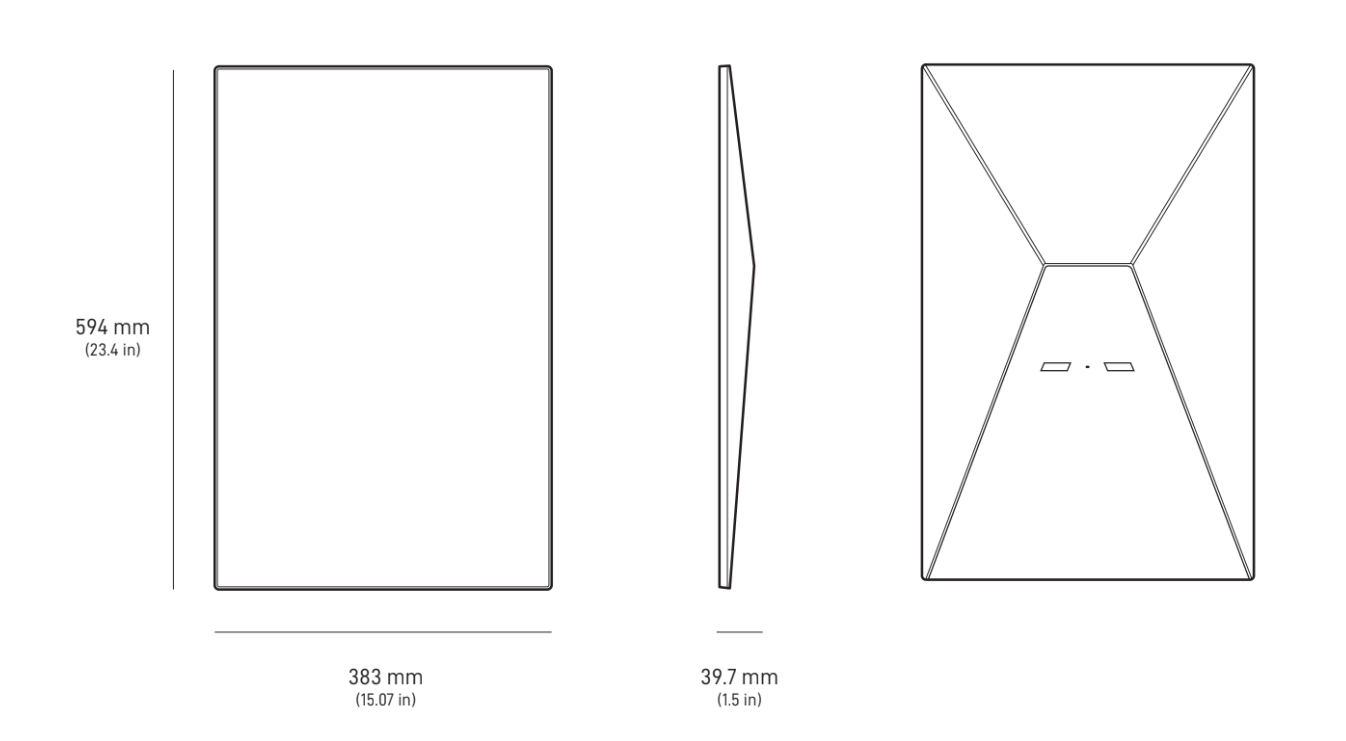

Note: Dimensions of Standard 4 and Standard 4 X dishes are the same.

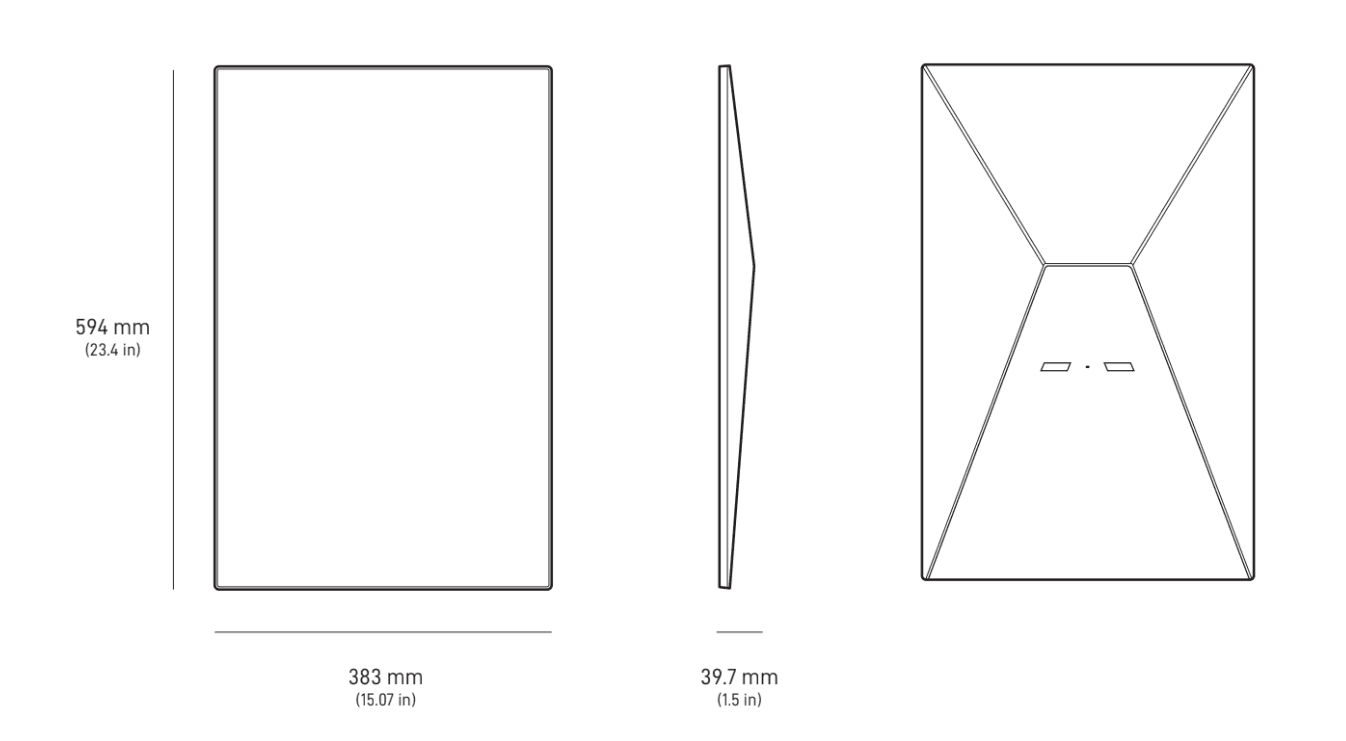

Standard 4 Kit

The Standard 4 kit features a fixed-kickstand design with a software-assisted manual orienting system, providing a sleek profile for home use.

• Dish Dimensions: 23.4 in L x 15.07 in W x 1.5 in D (594 mm x 383 mm x 39.7 mm)

• Kit Box Dimensions: 25.69 in x 17.78 in x 3.84 in (652.4 mm x 451.7 mm x 97.9 mm)

• Total Package Weight: 14.22 lbs (6.45 kg)

• Best For: Residential homes and long-term standard setups.

Standard 4 X Kit

Featuring the same hardware footprint as the Standard 4, the Standard 4 X Kit adjusts the packaged loadout (often including different cabling/router combinations like the Router 3) leading to a slightly heavier boxed package.

• Dish Dimensions: 23.4 in L x 15.07 in W x 1.5 in D (594 mm x 383 mm x 39.7 mm)

• Kit Box Dimensions: 25.69 in x 17.78 in x 3.84 in (652.4 mm x 451.7 mm x 97.9 mm)

• Total Package Weight: 14.83 lbs (6.73 kg)

• Best For: Enhanced residential or remote deployments needing heavier-duty routing capabilities.

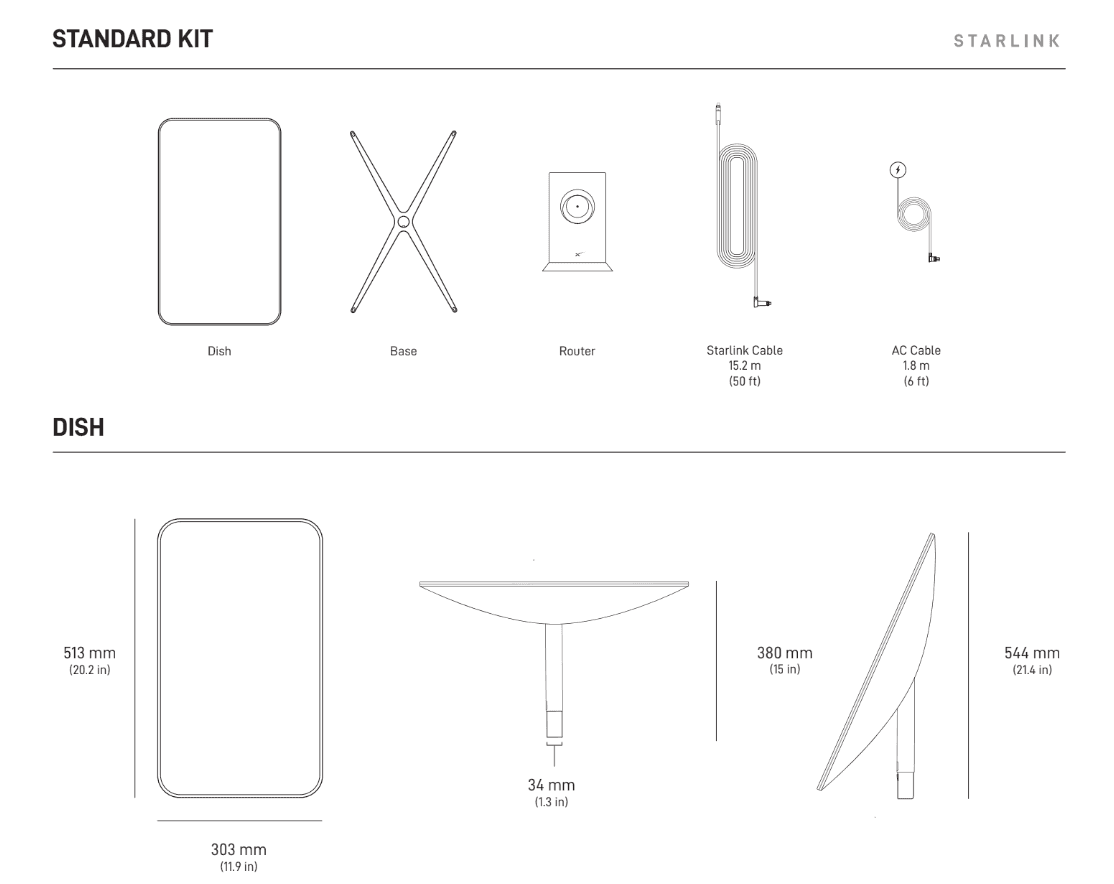

Standard Kit (Standard Actuated)

Previously the primary residential dish, the Standard Actuated model features a motorized mast that automatically self-orients to satellites.

• Dish Dimensions: 20.2 in L x 11.9 in W (513 mm x 303 mm)

• Kit Box Dimensions: 23.5 in x 14.0 in x 10.6 in (610 mm x 356 mm x 280 mm)

• Total Package Weight: 18.0 lbs (8.2 kg)

• Best For: Existing automated residential setups.

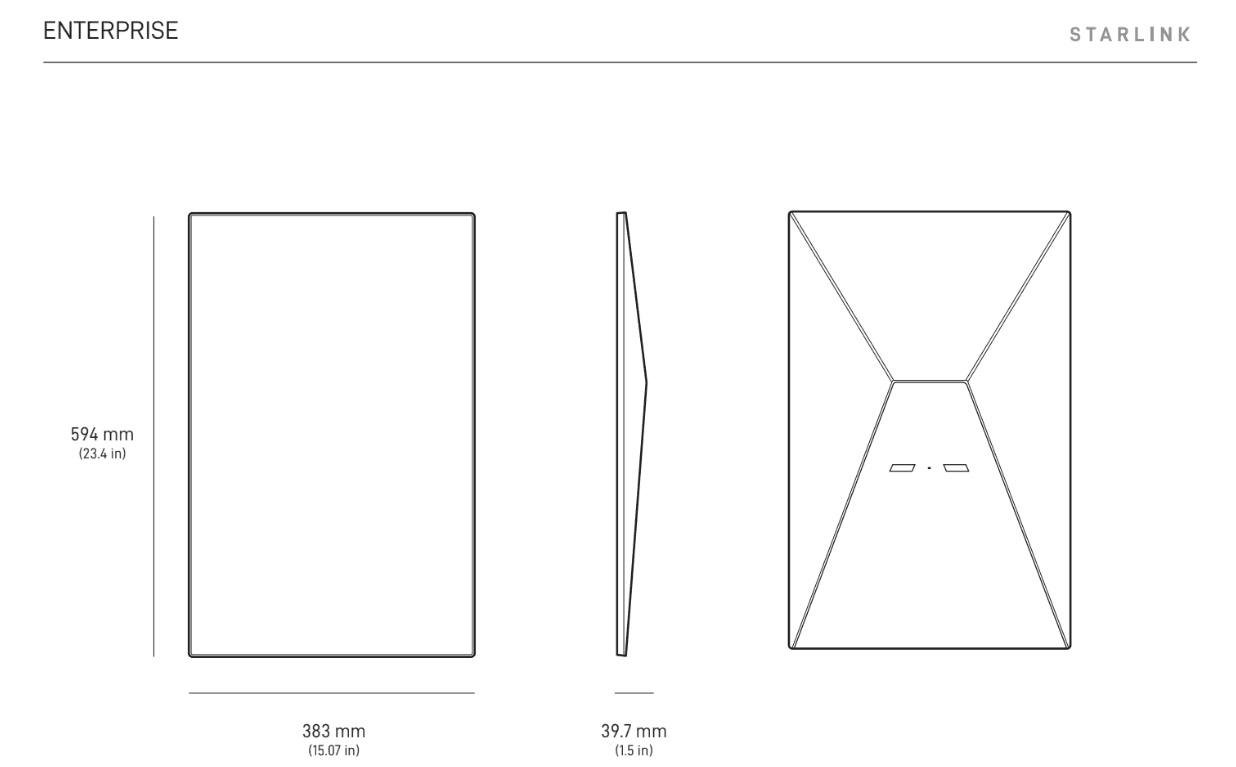

Enterprise Kit

The Enterprise Kit uses the same electronic phased array antenna footprint as the Standard 4 models, but is outfitted for serious commercial deployment. It drops the standard router in favor of a dedicated HP Power Supply Unit and heavier-duty 50m cabling.

• Dish Dimensions: 23.4 in L x 15.07 in W x 1.5 in D (594 mm x 383 mm x 39.7 mm)

• Kit Box Dimensions: 27.0 in x 18.8 in x 6.3 in (685.9 mm x 478.1 mm x 160.1 mm)

• Total Package Weight: 27.0 lbs (12.2 kg)

• Best For: Large-scale commercial and institutional deployments utilizing a dedicated power supply.

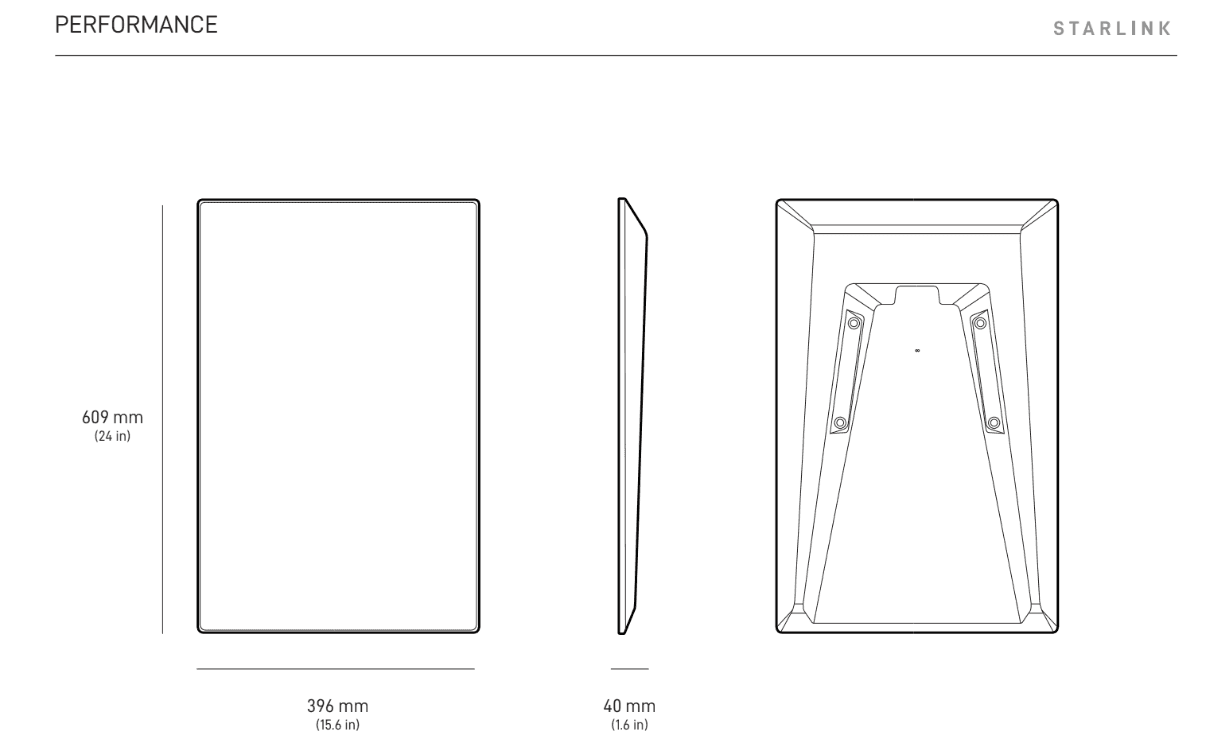

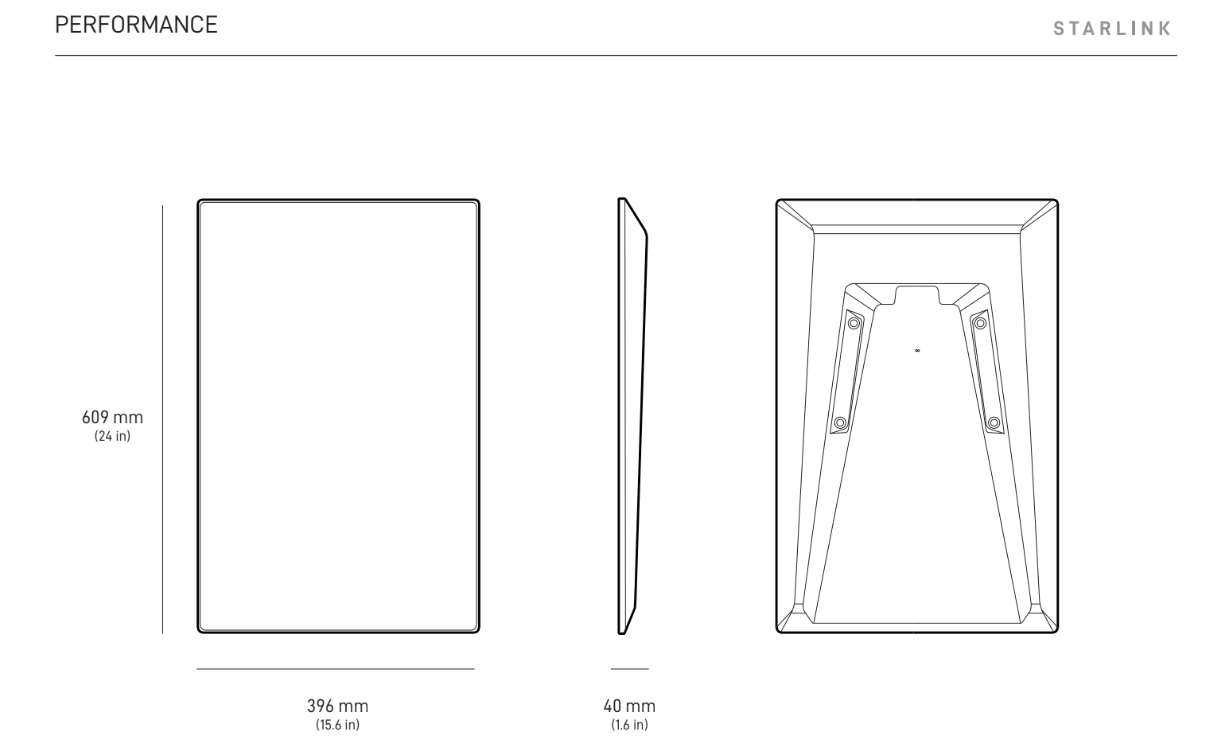

Performance Kit (Performance Gen 3)

The Gen 3 Performance kit is designed for resilient connectivity in harsh environments and extreme weather, optimized for the latest network upgrades. It offers a physically larger surface area than the standard arrays.

• Dish Dimensions: 24.0 in L x 15.6 in W x 1.6 in D (609 mm x 396 mm x 40 mm)

• Kit Box Dimensions: 27.0 in x 17.9 in x 4.8 in (685.8 mm x 454.7 mm x 121.9 mm)

• Total Package Weight: 26.0 lbs (11.8 kg)

• Best For: Remote operations, heavy network applications, and demanding climates.

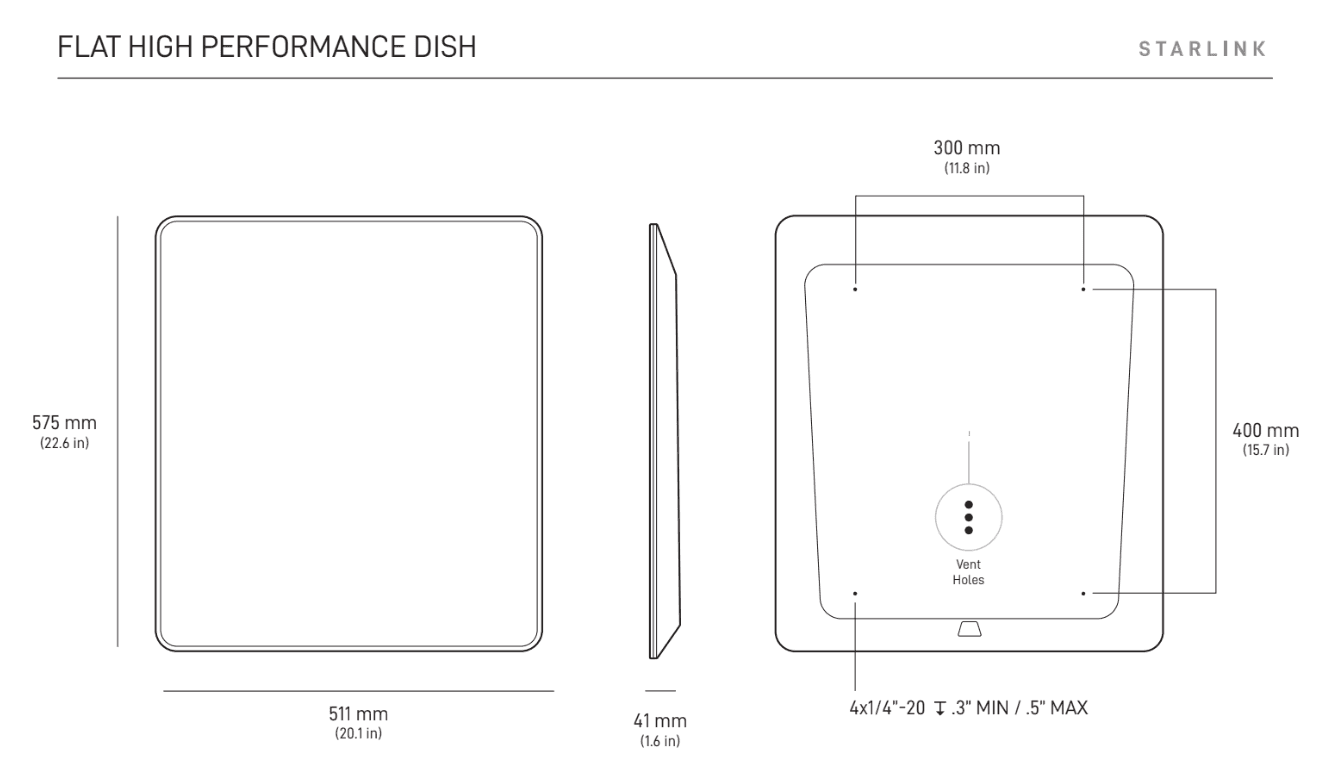

Flat High Performance Kit (Performance Gen 2)

This massive, rugged option is built for extreme weather, continuous usage, and in-motion maritime use. It is the heaviest dish currently available.

• Dish Dimensions: 22.6 in L x 20.1 in W x 1.6 in D (575 mm x 511 mm x 41 mm)

• Kit Box Dimensions: 26.7 in x 24.1 in x 7.5 in (679 mm x 613 mm x 191 mm)

• Total Package Weight: 35.8 lbs (16.25 kg)

• Best For: Boats, enterprise transport, and extreme moving climates.

How Heavy is a Starlink Kit?

Weight is a critical factor, especially if you are mounting the dish on a lightweight pole or carrying it in a backpack. The bare dishes range significantly based on their internal components:

• The Mini & Mini X dishes are the lightest, weighing just 2.43 lbs (1.10 kg) without the kickstand.

• The Standard 4, Standard 4 X, Enterprise, and Standard Actuated arrays all share a core dish weight of roughly 6.4 lbs (2.9 kg).

• The Performance Models are considerably heavier to accommodate wider phased arrays and beefed-up weatherproofing. The Gen 3 Performance weighs 11.5 lbs (5.2 kg), while the Flat High Performance (Gen 2) tips the scales at 13.0 lbs (5.9 kg) bare.

When factoring in the weight of the entire kit (including the router, heavy-duty cables, and mounting bases), shipping package weights span heavily. The Standard Mini ships in a lightweight 6.37 lb box, while the Flat High Performance arrives in a hefty 35.8 lb package.

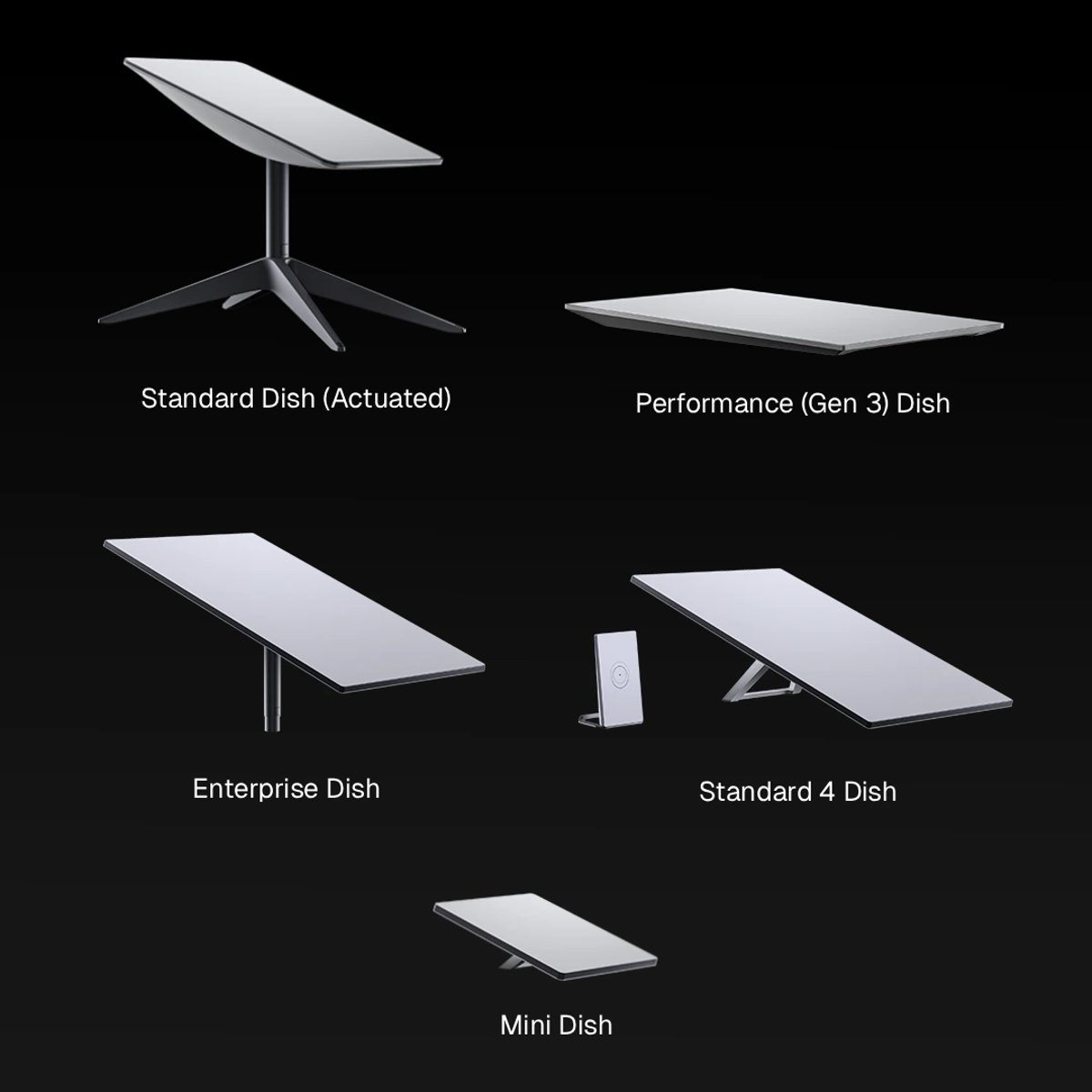

Visual Size Comparison: What Does Starlink Look Like?

Measurements only tell half the story. If you are trying to visualize how much space these receivers take up:

• The Mini Models are roughly the size of a large iPad or a standard piece of printer paper. They easily slide into standard daypacks.

• The Standard and Enterprise Models are comparable to the size of a large flat-screen computer monitor.

• The Performance Models are significantly broader, resembling large tabletop drafting boards.

Does Dish Size Affect Signal Strength?

Yes, the physical size of the antenna directly correlates with its performance.

Larger dishes, like the Performance Gen 3 and Flat High Performance, have expanded fields of view and more internal phased array elements. This allows them to "see" more satellites simultaneously, resulting in faster speeds, fewer drops, and better performance in heavy rain or snow.

The Mini, Standard, and Enterprise arrays share slightly narrower fields of view (roughly 110 degrees). While their top speeds might not peak as aggressively as the commercial-tier Performance dishes during severe storms, their size provides excellent reliability for standard browsing, streaming, and remote work.

Frequently Asked Questions (FAQ)

How big is the standard Starlink dish?

The Standard 4 kit measures 23.4 inches long by 15.07 inches wide (594 mm by 383 mm). This footprint applies to the Standard 4 X and Enterprise kits as well.

What is the smallest Starlink dish?

The Mini Kit (and Mini X Kit) are the smallest models available, measuring just 11.75 x 10.2 inches (298.5 x 259 mm). They are roughly the size of a large tablet.

How much does a Starlink weigh?

Weights vary strictly by model. The bare Mini dish is highly portable at just 2.43 lbs (1.1 kg). The Standard arrays weigh 6.4 lbs (2.9 kg), and the Flat High Performance dish weighs a sturdy 13.0 lbs (5.9 kg).

Can the Starlink Mini fit in a backpack?

Yes. Measuring exactly 11.75 inches long and less than 1.5 inches thick, the Mini array is specifically engineered to fit effortlessly into standard daypacks and travel bags.
