Starlink Cable Length (15m vs 45m Options, Connectors & Extension Limits) - 2026 Guide
On this page
The standard Starlink kit includes a 15-meter (49.2-foot) cable in the box for both the Standard Gen 3 (V4) dish and the portable Starlink Mini. If your installation requires additional reach between the satellite dish and your router or power source, SpaceX offers official replacement cables up to 45 meters (147.6 feet) for Standard Gen 3 in the Starlink Shop, and up to 50 meters (164 feet) for Enterprise hardware.
Because Starlink cables transmit high-wattage power alongside gigabit satellite telemetry, extending or replacing them requires understanding specific connector geometries, voltage-drop thresholds, and weather-sealing requirements. Below is the complete 2026 hardware specification matrix and engineered extension guide from our Hardware & Dish Guides hub.

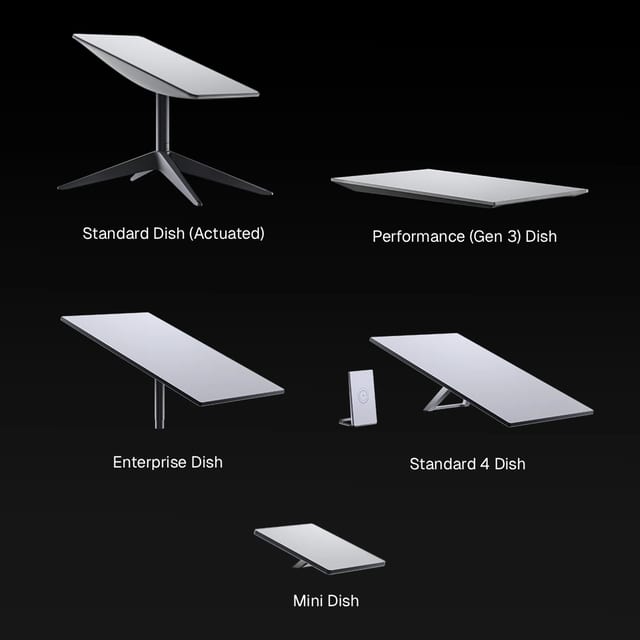

Starlink Cable Lengths & Specs by Model (2026)
| Hardware Model | In-Box Cable Length | Official Max Option | Connector Type | Weather Rating |
|---|---|---|---|---|
| Starlink Mini / Mini X | 15 m (49.2 ft) | 30 m (98.4 ft) | 5.5 x 2.5 mm DC Barrel / RJ45 | IP67 (Sealed) |
| Standard Gen 3 (V4 Kickstand) | 15 m (49.2 ft) | 45 m (147.6 ft) | Weatherproof RJ45 (T-568B) | IP67 Type 4 |
| Standard Actuated Gen 2 (Legacy) | 15.2 m (50 ft) | 45.7 m (150 ft) | Proprietary 20-pin SPX | IP54 / Water-Resistant |
| Flat High Performance | 8 m (26.2 ft) | 25 m (82 ft) | 8-Contact Multi-Pin / Earth GND | IP56 |
| Enterprise | 50 m (164 ft) | 50 m (164 ft) | 8-Contact Multi-Pin + 5m RJ45 | IP56 |
| Performance Kit (Current) | 25 m (82 ft) | 25 m (82 ft) | Performance Multi-Pin + 5m RJ45 | IP56 |

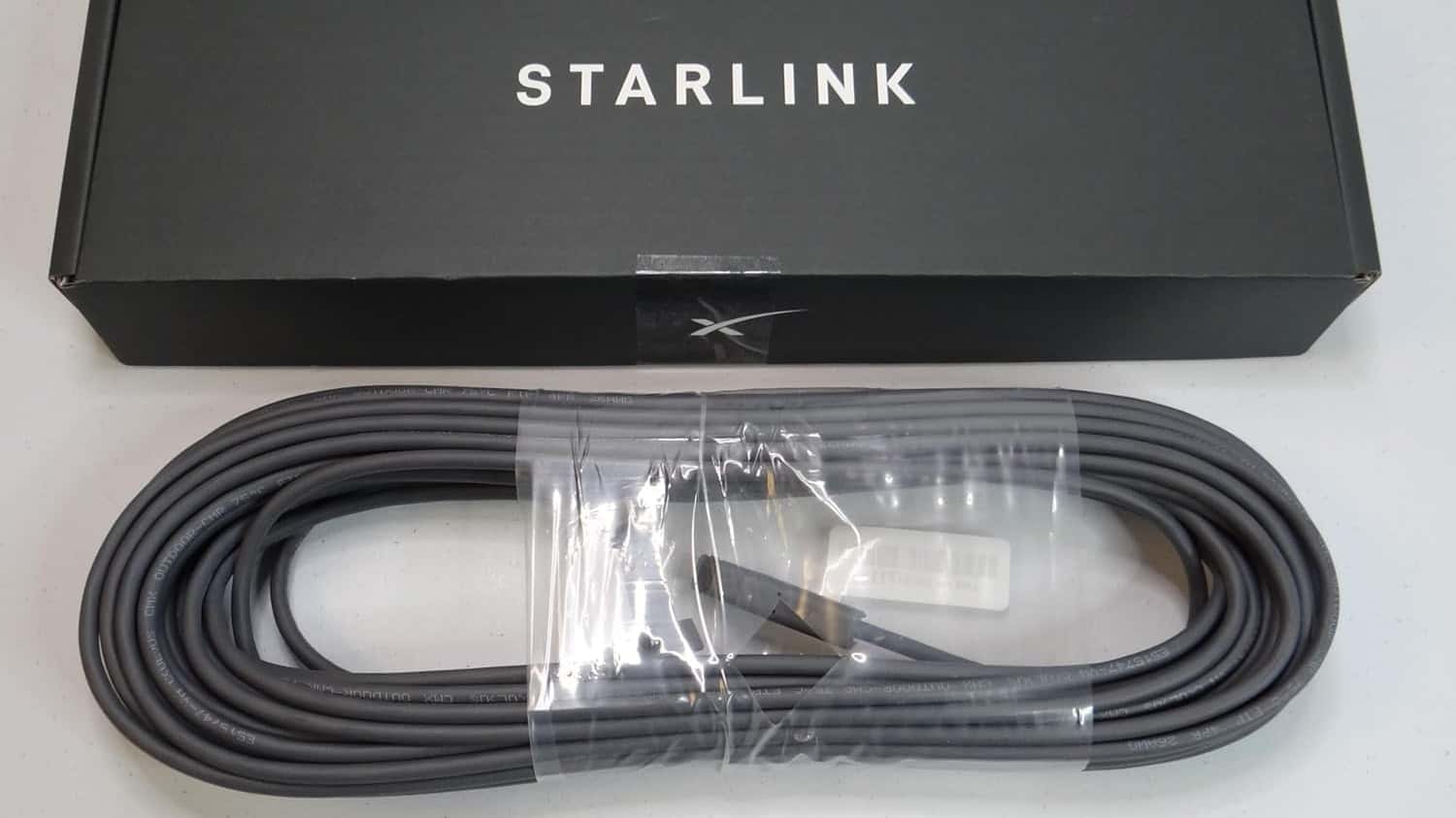

How Long Is the Cable That Comes With Starlink?

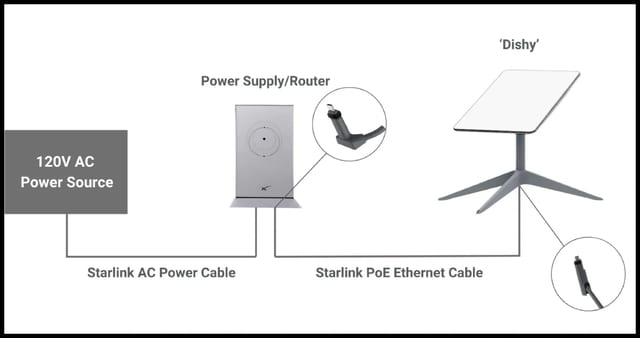

For all newly purchased residential setups (Standard Gen 3), Starlink includes a 15-meter (49.2-foot) cable. This cable connects directly from the rear port on the kickstand dish to the Gen 3 router power supply. According to the official Standard 4 X Kit Specifications, this cable is a custom Cat6 assembly engineered to handle both gigabit satellite data and up to 100W+ of Power-over-Ethernet.
On the ultra-portable Starlink Mini, the in-box cable is also 15 meters, terminating in a 5.5 x 2.5 mm waterproof barrel plug designed for 12V to 48V DC power inputs per the official Starlink Mini Spec Sheet. If you are powering your dish off-grid, check our companion Starlink Power Requirements & Solar Sizing Guide for exact DC battery draw calculations.
If you own the legacy motorized Standard Actuated Gen 2 rectangular dish, your original kit shipped with a 15.2-meter (50-foot) or 22.9-meter (75-foot) proprietary SPX cable depending on your production batch. Enterprise dishes include a heavy-duty 50-meter (164-foot) specialized power/data cable to support long commercial tower and building runs.
Official SpaceX Replacement & Long Cable Options
When the included 15-meter cable is too short to reach from your roof, chimney, or pole mount to your indoor living space, SpaceX manufactures official longer replacement cables available directly from the Starlink Shop:
• Starlink Standard Gen 3 45m Cable (147.6 ft): The primary official extension for Gen 3. Uses factory-molded locking weatherproof boots on both ends to maintain IP67 moisture seals without signal degradation.
• Starlink Mini 30m DC Power Cable (98.4 ft): Designed for extended DC power runs from remote batteries, solar generators, or AC adapters to the Mini dish.
• Legacy Gen 2 45.7m (150 ft) SPX Cable: The maximum official replacement cable for motorized rectangular dishes. Note that this is a full replacement cable, not an inline extension adapter.
Starlink Connector Types: RJ45 vs Mini DC Barrel vs SPX
One of the most critical upgrades in the Gen 3 hardware generation was the retirement of the fragile proprietary SPX connector in favor of standardized RJ45 Ethernet architecture. However, each hardware generation requires distinct handling:
1. Standard Gen 3 RJ45 with Weatherproof Shroud: Exposed conductor wires follow the standard T-568B wiring scheme (Pin 1 White/Orange to Pin 8 Brown) with a dedicated shield and bare drain wire. The connector features a custom rubber gasket and locking shroud that sits flush in the dish cavity to maintain an airtight IP67 seal.
2. Starlink Mini Barrel & LAN Port: Features a 13.3 mm outer diameter 5.5 x 2.5 mm barrel plug for power. The Mini also includes an auxiliary latching RJ45 LAN port protected by a removable rubber plug. Note: connecting a standard unsealed RJ45 patch cord into the Mini removes its IP67 outdoor rating unless the official sealed Mini Ethernet Cable is utilized.
3. Legacy Gen 2 SPX Connector: A proprietary 20-pin mini-HDMI style connector. Pins 1-8 and 13-16 carry power and satellite data. Due to tight manufacturing tolerances, SPX plugs are prone to pin corrosion if moisture penetrates the socket. For pinout mappings and adapter wiring, consult Oleg Kutkov's Starlink Reverse Engineering teardowns and our Starlink Cable Repair & Splicing Guide.
Can You Extend a Starlink Cable with Regular Ethernet?
Yes, but you must respect the physical boundary between Ethernet data transmission limits and Starlink Power-over-Ethernet (PoE) voltage drops.
• Data Limit (100 Meters / 328 Feet): Per IEEE 802.3 standards and ANSI/TIA-568 cabling specifications, the maximum total channel length for copper Ethernet is 100 meters (typically 90m solid permanent link plus 10m total patch cords). Exceeding 100m causes packet loss, latency spikes, and link flapping.
• Power & Voltage Drop Limit (57V PoE): Starlink dishes operate on proprietary 48V to 56V high-power PoE (drawing up to 75W to 150W peak during snow melt). When extending a Gen 3 cable using bulk Cat6, you must use solid 23 AWG or 24 AWG pure copper (never CCA / Copper-Clad Aluminum). Thin wires or CCA introduce severe resistance, causing voltage sag at the dish terminal that triggers boot loops during high transmit power cycles.
• Shielding & Continuity: Always use shielded Cat6 (STP/FTP) with shielded RJ45 connectors and an IP68-rated shielded waterproof coupler to maintain ground drain continuity and ESD protection from atmospheric static charge. If you need hardwired LAN drops inside your home, pair this setup with the Starlink Ethernet Adapter.
Wall Pass-Through & Routing Guidelines (Drill Sizes & Bend Radius)
Routing your Starlink cable through exterior building walls requires specific drill hole clearances to prevent damaging the factory connector heads:
| Hardware Generation | Connector Clearance Required | Recommended Drill Bit | Conduit Minimum I.D. |
|---|---|---|---|
| Starlink Mini (DC Barrel) | 13.3 mm (0.52 in) | 16 mm (5/8 in) Spade/Boring | 20 mm (3/4 in) Conduit |
| Standard Gen 3 (RJ45 Shroud) | 18.5 mm (0.73 in) | 19 mm (3/4 in) Spade Bit | 25 mm (1.0 in) Conduit |
| Legacy Gen 2 (SPX Head) | 21.5 mm x 14.5 mm | 25 mm (1.0 in) Hole Saw | 32 mm (1-1/4 in) Conduit |
| Flat High Performance | 19 mm (0.75 in) | 19 mm (3/4 in) Spade Bit | 25 mm (1.0 in) Conduit |
Essential routing best practices:
1. Downhill Angle & Drip Loop: Always drill exterior wall penetrations at a slight downward angle from inside to outside. Form a 6-inch downward U-shaped drip loop immediately before the wall entry so rain drains away from the hole.
2. Silicone Grommet Sealing: Use outdoor UV-rated silicone sealant inside and around the wall grommet to prevent air drafts, moisture ingress, and insect entry.
3. Bend Radius Rule: Never bend Starlink cables tighter than 4 times the cable outer diameter (minimum 50 mm / 2.0 inch bend radius). Sharp 90-degree kinks pinch internal twisted pairs and break high-frequency impedance matching.
4. Obstruction Check: Before drilling or fastening cables permanently, run the Starlink Obstruction Scanner Tool to ensure your mounting location has a completely clear field of view to the orbital constellation.
Related Starlink Hardware & Power Guides
Planning a complete off-grid, residential, or RV installation? Explore our companion engineering guides:
• Starlink Dish Dimensions & Weight Guide (2026): Detailed physical measurements, surface areas, and mount footprints.
• Starlink Power Requirements (Watts & Solar Sizing): Exact wattage draw, battery sizing, and 12V conversion rules.
• Starlink Router Settings Walkthrough: Accessing the 192.168.100.1 web interface, sleep mode schedules, and bypass configuration.

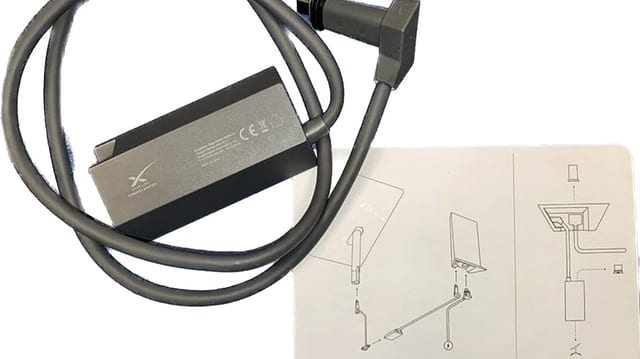

• Starlink Ethernet Adapter Setup: Connecting hardwired switches, mesh networks, and third-party routers.
• Starlink Cable Repair & Splicing: Step-by-step pinout color codes and field splice repair procedures.
Frequently Asked Questions
How long is the cable that comes with Starlink Standard Gen 3?
The standard Starlink Gen 3 kit comes with a 15-meter (49.2-foot) cable featuring custom weatherproof RJ45 connectors with T-568B pinouts.
Can I bury the Starlink cable directly underground?
No. Standard Starlink cables are UV-resistant and weatherproof for outdoor routing, but they are not rated for direct burial. If running underground, you must install the cable inside schedule 40/80 PVC conduit to protect it from moisture saturation, rock abrasion, and rodents.
Does Starlink sell a 150 ft cable?
Yes, for legacy Gen 2 rectangular dishes, SpaceX sold an official 150 ft (45.7m) replacement cable. For current Standard Gen 3 dishes, the longest official cable available in the Starlink Shop is 45 meters (147.6 feet).
What happens if my Starlink cable is longer than 100 meters?
Exceeding the 100-meter (328-foot) Ethernet standard causes transmission packet loss, CRC errors, and connection dropouts. Additionally, the proprietary 57V PoE will experience severe voltage drop, causing the dish to reboot when phased-array beam steering increases power draw.
